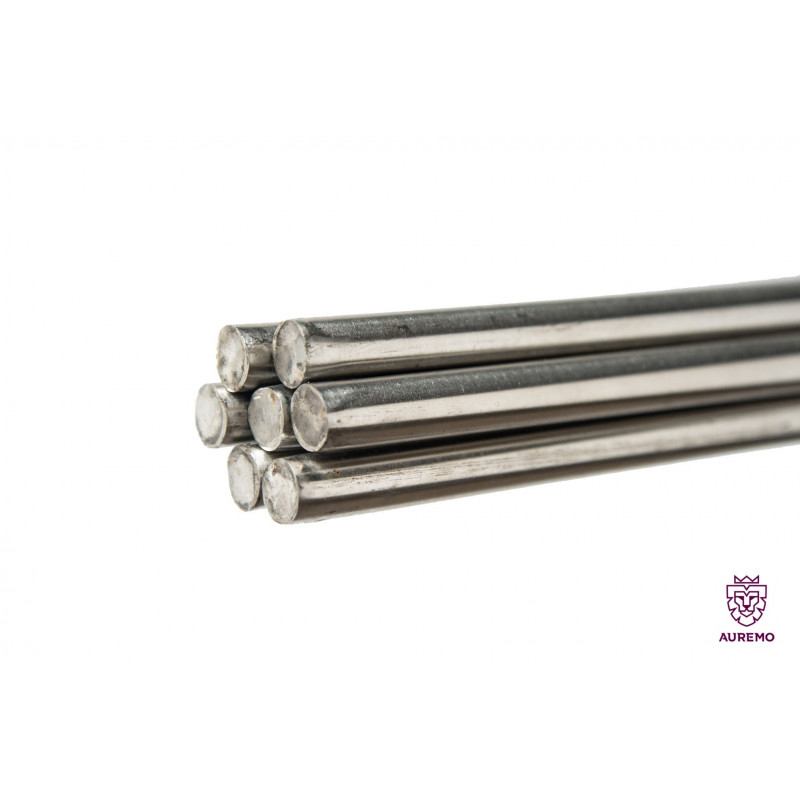

Round bar stainless steel Ø0.4-4mm Aisi 301 1.4310 profile solid shaft rod bar
Round bar stainless steel Ø0.4-3.5mm Aisi 301 1.4310 profile solid shaft bar rod
Length tolerance +/-2mm
Description:
Material 1.4310 can still be easily formed despite the higher yield point compared to material 1.4301. The tarnishing or scale layers that occur during heat treatment or welding impair the corrosion resistance. Due to the tendency of the material to strain hardening and the relatively low thermal conductivity, machining must be carried out with tools made of high-quality tool steel or hard metal alloys. Material 1.4310 can be polished.
Solution annealing at 1000 °C – 1100 °C with subsequent rapid cooling in air or water leads to optimum properties with regard to processing and application. During production and further processing, temperatures of 450 °C - 850 °C must be avoided in order to keep the risk of embrittlement as low as possible. Depending on the mechanical load, the maximum usage temperature is between 120 °C and 250 °C.
Properties of the material 1.4310:
- good corrosion resistance
- good forgeability
- excellent weldability
- good polishability
- good mechanical properties
Main application of the material 1.4310:
- automotive industry
- chemistry and petrochemistry
- food industry
- mechanical engineering
- electronic equipments
If you are interested in stainless steel, buy bars, sheets, wires, tubes, strips at online shop Auremo at a reasonable price.
Technical specifications:
Brand: | auremo |
Manufacturing Country And Region: | Germany |
Manufacturer number: | Not applicable |
Type: | pole |
Norm classifications: | |
Material number: | 1.4310 |
EN: | X10CrNi18-8 |
US: | S30200 |
AISI/SAE: | 301 |
Chemical composition (in %):
C | si | Mn | P | Cr | no | feet | Mon |
max 0.15% | 2.0% | 2.0% | 0.045% | 16.0 - 19.0% | 6.0 - 9.5% | rest | 0.8% |
Mechanical properties (reference values at 20°C):
Hardness HB 30 | 0.2% yield strength Rp - N/mm2 | tensile strength Rm | Elongation A5 | Modulus of elasticity kN/mm2 |
230 | 250 | 500 | 40% | 200 |
Physical properties (approximate values at 20°C):
Density g/cm3 | Specific heat J/kg K | Thermal conductivity W/(mK) | Electrical resistance Ω mm2/m |
7.9 | 460 | 14.7 | 0.73 |
