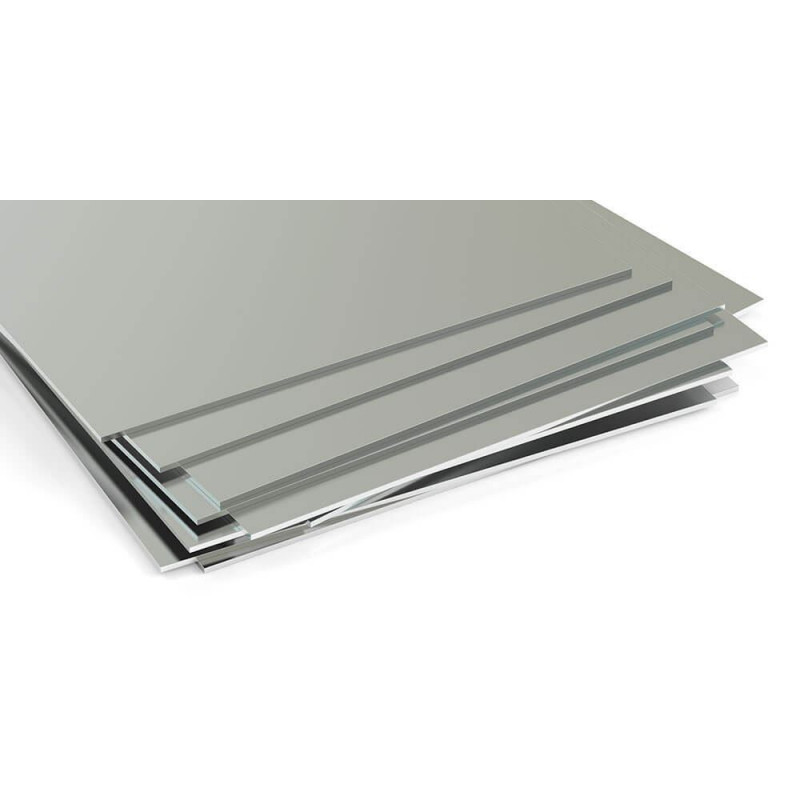

    Stainless steel plate 20mm V4A sheet Aisi 1.4571 cut from 100 mm to 2000 mm

    €575.91
    VAT included

    Stainless steel plate 20mm V4A sheet Aisi 1.4571 cut from 100 mm to 2000 mm

    Thickness / Strength :
    length :
    width :
    Quantity :
     Customer ratings and reviews
    Nobody has posted a review yet
    in this language
    • 100% no China imports (watch out for high price differences)
    • Our products are mostly made in Germany
    • High quality at the best prices.
    • TOP rating & service

    Length tolerance +/- 2mm

    Description:

    Chromium forms a film on the surface of the product that protects against corrosion. Molybdenum offers a long service life. Titanium is responsible for increased strength. Alloy and, accordingly, all products made from it, are perfect for welding. Heat treatment after welding is not required. It is recommended to clean and passivate welds.

    Specifications of the pipes can have tolerances according to DIN. Tolerance is + - 2mm for the pipes.

    AISI 316Ti stainless steel tubing is manufactured according to ASTM A312 / ASME SA312M. AISI 316Ti is the most popular alloy for the manufacture of seamless stainless tubes. It is an AISI 316 bearing alloy stabilized with titanium. Such an alloy can improve very important properties. The main advantage of the alloy is the ability to withstand sensitization at high temperatures (up to +800 ° C) for a long period of time.

    Stainless steel pipe AISI 316Ti is ideal for use in seawater and can therefore be used in shipbuilding. In the extractive industry on water platforms, these pipes are simply irreplaceable. Stainless steel pipes made of AISI 316Ti are also considered to be heat-resistant. It can be operated at temperatures of up to 600 degrees Celsius without losing its properties. Based on this indicator, its application extends to various types of mechanical engineering, and the automotive industry uses a pipe of this brand as a workpiece for subsequent machining of parts. The use of 316Ti AISI tubing also extends to the chemical, metallurgical and electrical industries.

    Technical specifications:

    Brand: Auremo
    Manufacturing Country And Region: Germany
    Manufacturer number: Not applicable
    Type: Sheet metal, plate
    Material: stainless steel
    Operation area: AISI 316Ti (V4A)
    Standard classifications:
    Material number: 1.4571
    EN: X6CrNiMoTi17-12-2
    US: S31635
    Further information:
    Corrosion Resistance: Good
    Weldability: Excellent
    Machinability: medium
    Yield strength: ≥ 200 MPa
    Tensile strenght: 500-700 MPa
    Temperature stress: up to 600 ° C
    Density: 8 kg / dm³
    Hardness: HB 215
    Thermal conductivity: 15 W / m * K

    documentation

    Datasheet (German)
    304
    Auremo
    Edelstahl Blech
    15 Items
    2021-03-11

    Data sheet

    Type
    sheet
    material
    stainless steel
    Material number
    1.4571
    AISI
    316 Ti
