- New

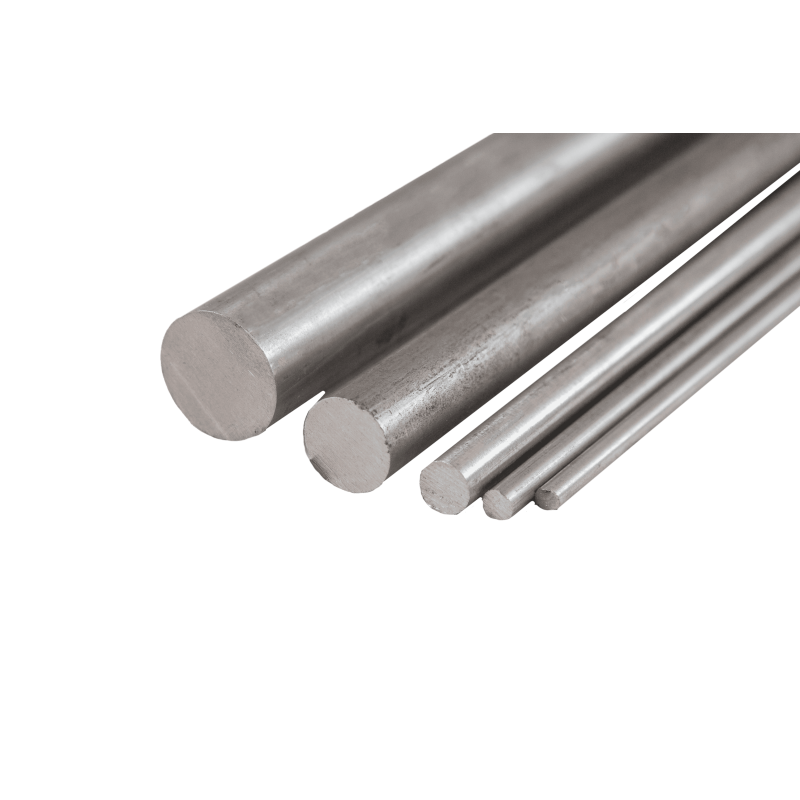

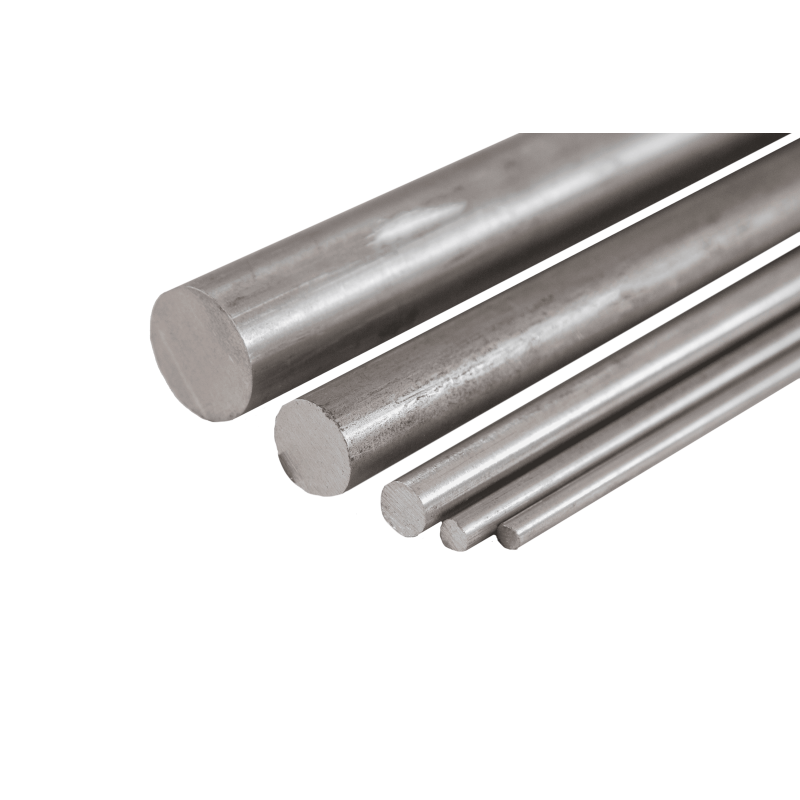

Inconel® X750 Alloy Rod 24-40mm 2.4669 N07750 alloy X-750 Round Bar 1.2-2Meters
€2,045.20
VAT included
Properties of the Material 2.4669: high creep and stress rupture strength up to about 800 °C; very good relaxation resistance; good corrosion resistance; very high mechanical strength;
Main application of the Material 2.4669: rocket construction; components for gas turbines;
Length Tolerance +/-2mm
Description:
- Production time - none. Already in stock.
- Shipping preparation - 2-3 working days.
- Delivery time - depending on the parcel service. Please check the FAQ.
The material 2.4669 is one of the most widely used materials among nickel-based superalloys. It is a material that is resistant even in highly corrosive environments, can be hardened by aging, and essentially consists of a combination of nickel and chromium elements. Another common designation for 2.4669 is UNS N07750. It contains about 70% nickel and about 17% chromium, is oxidation resistant up to 704 °C, and possesses very high mechanical strength.
Above this temperature, the material 2.4669 begins to lose its mechanical strength but retains it up to 982 °C. Furthermore, it retains its properties even at cryogenic temperatures.
Inconel X-750 / Alloy X-750 is versatile in use. It is used in gas turbines, wheels and blades, turbine bolts, other turbine connections, and parts of rocket engines. High-pressure resistant rods made from the material 2.4669 are also frequently used in high-pressure vessels. This material is used for heat transfer seals, extrusion slides, and many other parts that require high mechanical strength. Additionally, 2.4669 is preferred for fasteners such as springs and screws in environments where work is frequently conducted below zero degrees Celsius.
Properties of the Material 2.4669:
- high creep and stress rupture strength up to about 800 °C
- very good relaxation resistance
- good corrosion resistance
- very high mechanical strength
Main Applications for the Material 2.4669:
- Rocket construction
- Components for gas turbines
In our online shop Auremo, you will find various dimensions of nickel round bars; we also have a large selection of other bars at affordable prices. If you have any questions, please contact us.
Technical Data:
| Brand: | Auremo |
| Country/Region of Manufacture: | Germany |
| Manufacturer Number: | Not applicable |
| Type: | Rod, Round Bar |
| Standard Classifications: | |
| Material Number: | 2.4669 |
| Alloy: | X-750 |
| UNS: | N07750 |
| EN: | NiCr15Fe7TiAl |
Chemical Composition (in %):
| Cr | Al | Ni | Fe | C | Mn | ||
| max. 17% | 1.0% | 70.0% | 2.7% | 1.2% | 9.0% | 0.08% | 1.0% |
Mechanical Properties (Reference Values at 20°C):
| 0.2% Yield Strength Rp - N/mm² | Tensile Strength MPa | Elongation A5 % | Modulus of Elasticity kN / mm² |
| 630 | 980 | 8 | 214 |
Physical Properties (Reference Values at 20°C):
| Density g/cm³ | Specific Heat J/kg K | Thermal Conductivity W/(mK) | Electrical Resistance Ω·mm²/m |
| 8.2 | 430 | 12 | 1.21 |
