Tungsten Wire Ø 0.02mm-2mm 99.95% W Pure Metal Element 74 Tungsten Pure Wire

Length tolerance +/-2mm

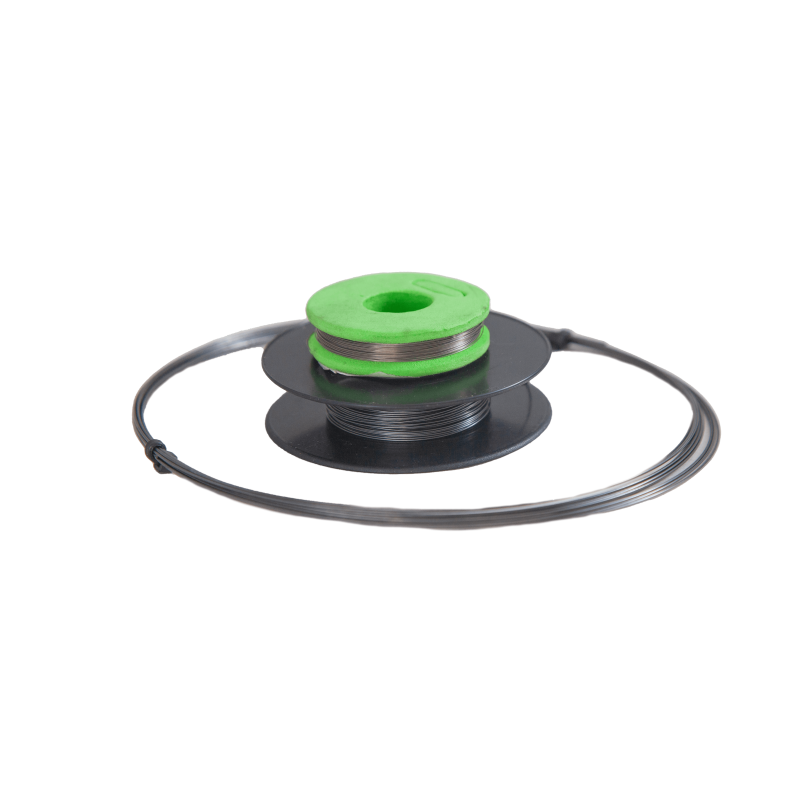

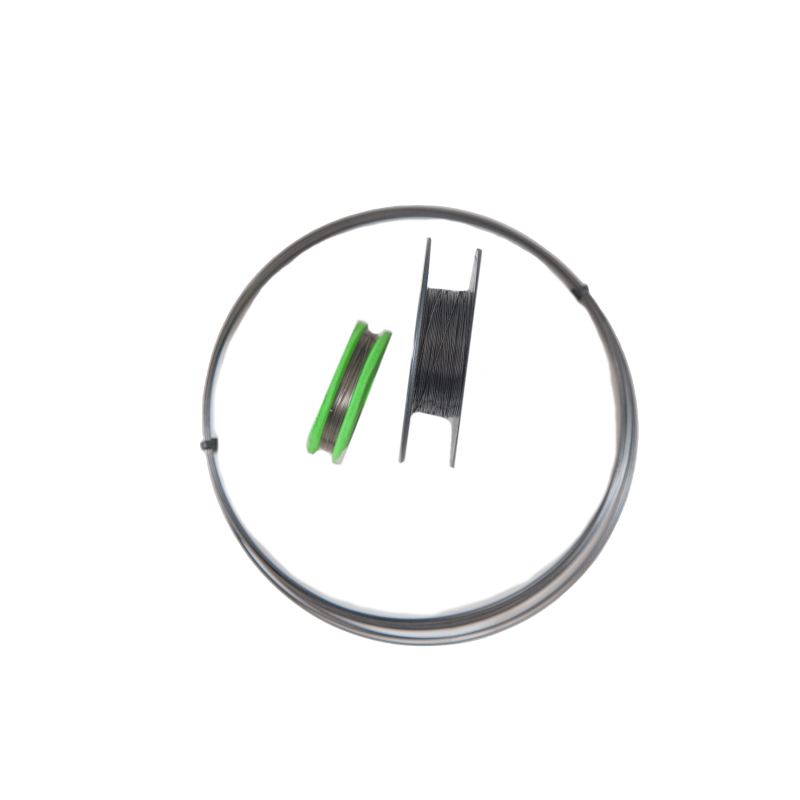

ATTENTION! The wire is shipped either wound on a different spool or in a coil/roll. If you want a spool, contact us—at an additional cost we will ship the wire on a spool. The photos show spools with 2–3 kg of wire.

Description:

Tungsten wires are characterized by their robustness, especially by the highest melting point of all metals and the highest tensile strength. This makes a thin tungsten wire very efficient. Also noteworthy is the high density of 19.3 x water, comparable to that of uranium and gold. This high density also means a high absorption capacity for radioactive radiation and X-rays.

Tungsten is used wherever high temperatures are required. In the literature, values between 3387 and 3422 °C are reported. To boil tungsten, temperatures of about 5555 °C are required. Depending on the diameter, tungsten wire achieves high mechanical strengths. It also has very high stiffness and a low thermal expansion coefficient. Tungsten is paramagnetic, meaning it is attracted by a magnet but does not act as magnetic itself.

Properties of tungsten wire:

• very high melting point and low vapor pressure
• very high density
• very high heat resistance
• good corrosion resistance in acids and metal melts
• low thermal expansion

Main areas of application for tungsten wire:

• lamp filaments
• X-ray tube anodes
• electrical switching contacts
• heating elements
• shielding
• thermocouples

Auremo’s online shop offers you the option to buy tungsten wires at favorable prices. We always have a large selection of high-quality metals in stock. In this segment, Auremo is a reliable supplier.

Technical data:

Mechanical properties (reference values at 20°C):

Physical properties (reference values at 20°C):
