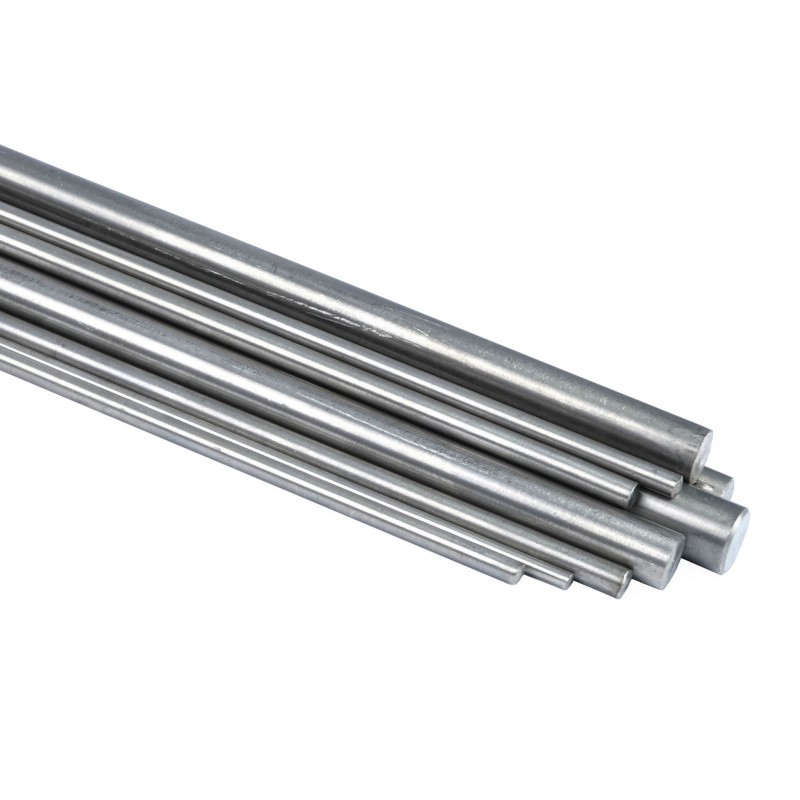

    Bar Stainless Steel From 2mm Round Bar UNS S31635 Round Bar Solid Material 1.4571

    €1.14
    VAT included

    Properties of the material 1.4571: high corrosion resistance; not rusty; good mechanical properties; malleable and weldable; well suited for cold forming;

    Main application of the material 1.4571: construction; food and beverages; paper and textile plants; Pressure vessel;

    Durchmesser :
    length :
    Quantity :
     Customer ratings and reviews
    Nobody has posted a review yet
    in this language

    Length tolerance +/-3mm

    Description:

    Austenitic steels AISI 316Ti are heat-resistant steels with high corrosion resistance. The alloy contains titanium, which makes steel somewhat difficult to process and weld, but at the same time provides excellent strength and wear resistance.

    The composition of heat-resistant stainless steel AISI 316Ti is quite similar to its analogue - AISI 316. The main difference is the presence in the composition of molybdenum (up to 2.5%) and titanium (0.5%). Chromium and nickel additions are also present.

    Molybdenum components give the highest resistance to corrosion, resistance to acidic vapors, chlorine compounds, sea water. Titanium additions increase the mechanical strength of the alloy and give the steel longer durability.

    AISI 316Ti chromium-nickel steel is used in a wide range of applications. It is used in the manufacture of pipelines, vessels and tanks for the needs of the food and chemical industries. Steel is neutral to acids and alkalis, does not interact with aggressive components of the environment and the product.

    It is in demand in the oil and gas industry, in medicine and pharmacology. It is used to manufacture all kinds of working tools, bearing parts, springs, turbine elements and automobile engines. It is the main alloy for the construction of structures with increased strength and durability requirements.

    Properties of the material 1.4571:

    • high corrosion resistance
    • not rusty
    • good mechanical properties
    • malleable and weldable
    • well suited for cold forming

    Main application of the material 1.4571:

    • construction
    • foods and beverages
    • paper and textile plants
    • pressure vessel

    Technical specifications:

    Brand: auremo
    Manufacturing Country And Region: Germany
    Manufacturer number: Not applicable
    Type: Rod, Rubstabe
    Norm classifications:
    Material number: 1.4571
    EN: X6CrNiMoTi17-12-2
    US: S31635
    AISI/SAE: 316Ti

    Chemical composition (in %):

    C si Mn S Cr Mon no Ti
    max 0.08% 1.0% 2.0% 0.015% 16.5-18.5% 2.0-2.5% 10.5-13.5 5 x C%

    Mechanical properties (reference values at 20°C):

    Hardness HB 30 0.2% yield strength Rp - N/mm2 tensile strength Rm elongation A5 % Modulus of elasticity kN/mm2
    215 200 500-700 40/30 200

    Physical properties (approximate values at 20°C):

    Density g/cm3 Specific heat J/kg K Thermal conductivity W/(mK) Electrical resistance Ω mm2/m
    8th 500 15 0.75
    Edelstahl, Stange, 1.4571, AISI 316Ti
