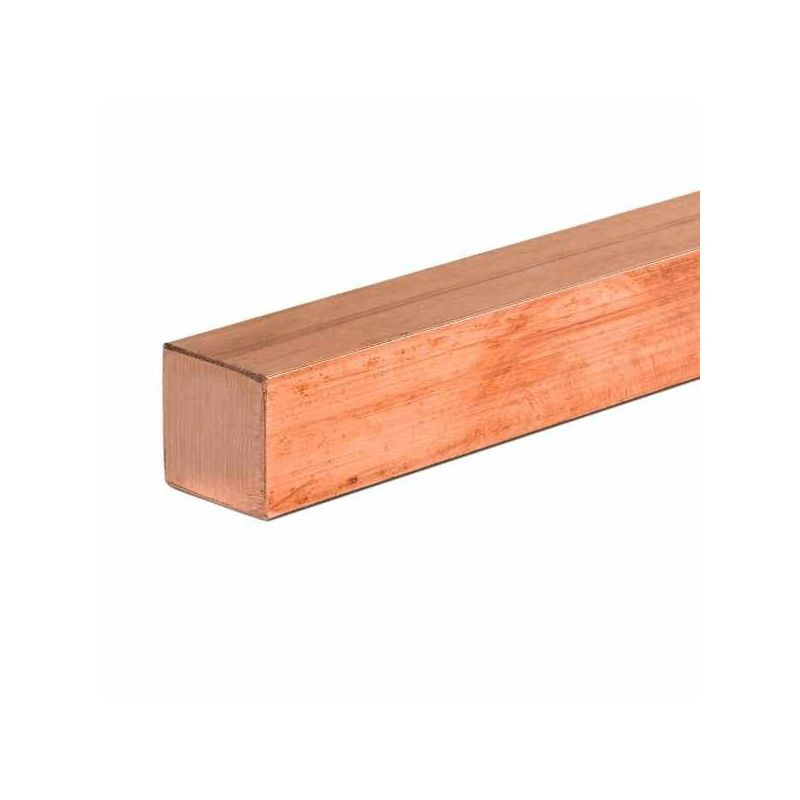

    Kupfer Vierkant 6x6-40x40mm Kupfer Vierkantstab CW004A (Cu-ETP - 2.0065) Vierkantstange Cu-ETP

    €201.00
    VAT included
    Product available with different options

    Copper square 6x6-40x40mm copper square bar 2.0065 square bar Cu-ETP


    Size :
    Length :
    Quantity :
     Customer ratings and reviews
    Nobody has posted a review yet
    in this language

    Technical specifications:

    Brand:Auremo
    Manufacturer number:Not applicable
    Type:square bar
    Material:copper
    Operation area:Heating and cooling technology (heating and cooling elements); building (as decoration for ambience, facades, etc.); electrical engineering and apparatus engineering; shipbuilding and mechanical engineering; electric lines; wire windings and chokes/coils
    Norm classifications:
    Material number:2.0065
    US:CW004A
    EN:Cu ETP
    Further information:
    Density:8.93 g/cc
    melting point:1083°C
    thermal conductivity:394 W/m K
    Electrical conductivity:57ms/m
    Electrical resistance:0.018Ω•mm²/m
    Condition:semi-hard/hard
    Surface:smooth (may contain handling or storage marks)

    Description:

    Copper square bar with the material designation Cu-ETP represents an electrolytically refined and oxygen-containing copper. The copper content is at least 99.9%. The oxygen content is max. 0.04%. This makes the material unsuitable for welding due to hydrogen embrittlement. The material has excellent cold and hot deformability and is excellent for soft soldering. Brazing in a reducing atmosphere and machinability are not recommended.

    Thanks to its high electrical conductivity and high thermal conductivity, round copper rods are used for heating technology (radiators, heat exchangers), electrical machines (electric motors, chokes/coils) and components (terminals, contact carriers).

    Square bar is widely used for:

    • Heating and cooling technology (heating and cooling elements);
    • Building (as decoration for interior lining and facades);
    • electrical engineering and apparatus engineering;
    • shipbuilding and mechanical engineering;
    • electric lines;
    • wire windings and chokes/coils.

    Copper square bar has the following properties:

    • excellent cold and hot formability;
    • excellent processing properties;
    • excellent solderability;
    • good corrosion resistance;
    • not suitable for sweating;
    • cannot be brazed in reducing atmosphere;
    • poor machinability.

    documentation

    Data sheet (German)
    gr2
    circle

    d - outer diameter
