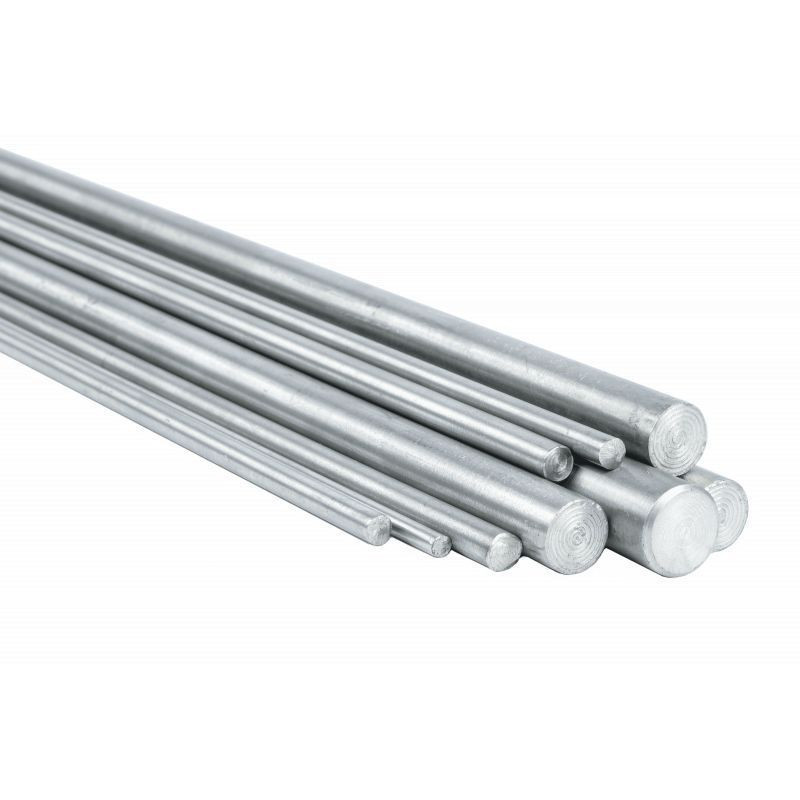

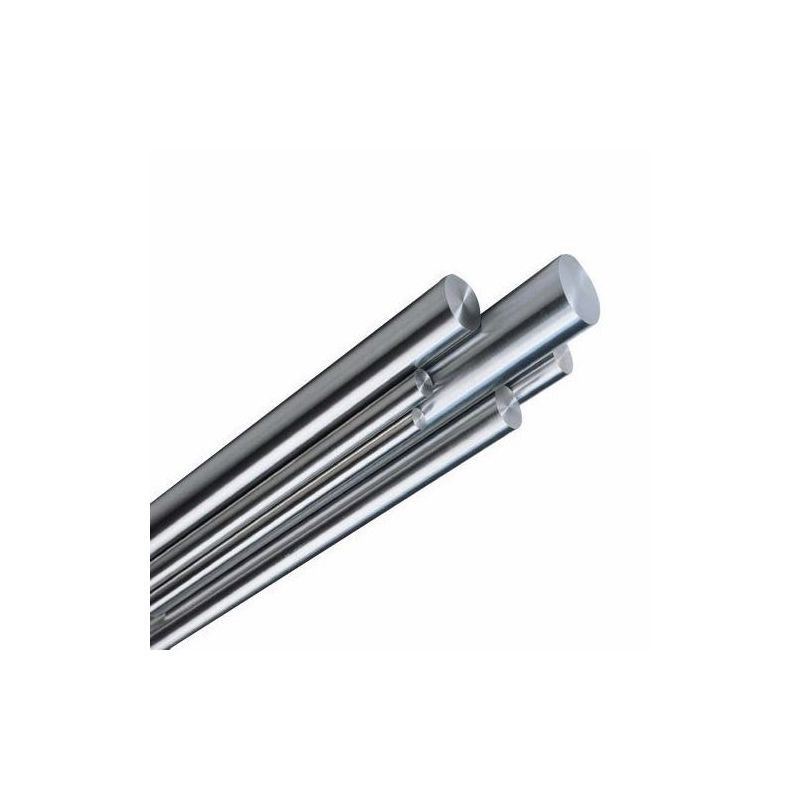

Rod Invar®36 Ø 2mm-30mm 1.3912 Round Bar Ni 36 Alloy 36 UNS K93600
€0.92
VAT included
Rod Invar®36 Ø 2mm-70mm 1.3912 Round Bar Ni 36 Alloy 36 UNS K93600
For the width and length of a sheet metal cut, the tolerance is +/-2mm
Important: Sheet metal cuts are not suitable for decorative or visible areas. Cutting is done with a guillotine shear. Edges are sharp! Not all sheets have protective film. Surface is pure industrial quality - scratches are not excluded! Please inquire separately in advance - we will try to find a solution for you.
Description:
- Production time - none. Already in stock.
- Shipping preparation - 2-3 working days.
- Delivery time - depending on the parcel service. Please check the FAQ.
Note: Cut with a guillotine shear. Cutting tolerance +/- 2mm.
If you need rods made of material 1.3912, buy them in the Auremo online shop at affordable prices.
The material 1.3912 or Invar 36 is a nickel-iron alloy with low expansion and this alloy has 36% nickel. It maintains almost constant dimensions over the range of normal atmospheric temperatures and has a low expansion coefficient from cryogenic temperatures up to about 260 °C. The alloy also retains high strength and toughness at cryogenic temperatures. The material 1.3912 is a nickel-iron alloy with a thermal expansion rate of about one-tenth that of carbon steel at temperatures up to 204 °C.
This alloy has been used for applications where dimensional changes due to temperature fluctuations need to be minimized, such as in radio and electronic devices, aircraft controls, optical and laser systems, etc.
Invar 36 can be welded using conventional methods. Care must be taken not to overheat the molten metal. This avoids splashes of molten metal and indentations in the weld area.
The rods made of material 1.3912 are corrosion-resistant in a dry atmosphere at room temperature. Under unfavorable conditions, i.e., in a humid atmosphere, corrosion in the form of rust may occur.
Properties of material 1.3912:
- good strength and toughness at low temperatures
- Melting range: 1340 °C
- good ductility
Main areas of application for material 1.3912:
- Aircraft controls
- Optical systems
- Cryogenic components
- Automotive industry
- Manufacture, storage, and transport of liquefied gases
In our Auremo online shop, you will find various lengths and sizes of rods at an affordable price. If you have questions about this and other metals, contact us.
Chemical composition (in %):
| Ni | Fe | Cr | Mo | Co | Mn |
| max.36% | Rest | 0.5% | 0.5% | 1.0% | 0.6% |
Mechanical properties (room temperature):
| 0.2% Yield strength Rp - N/mm2 | Tensile strength MPa | Elongation at break A5% | Modulus of Elasticity kN/mm2 |
| 310 | 490 | 30 | 140 |
Physical Properties (Room Temperature):
| Density g/cm3 | Specific Heat J/kg K | Thermal Conductivity W/(mK) | Electrical Resistance Ω·mm2/m |
| 8.13 | 515 | 10.5 | 0.75 |
